Overhead Concealed Operator
GT300 & GT8300 / Automatic

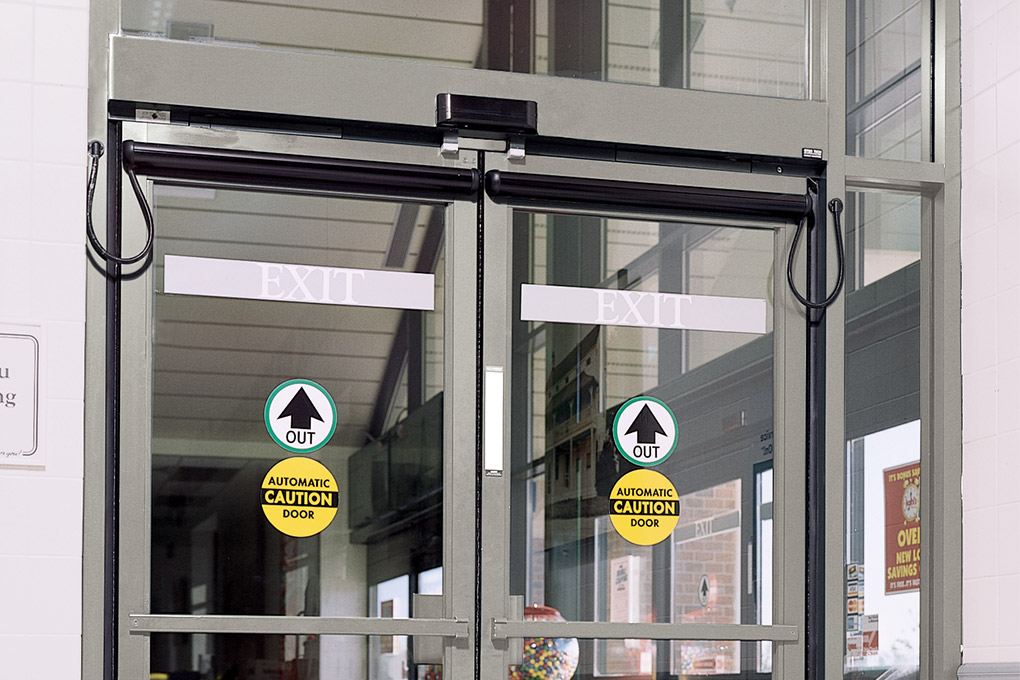

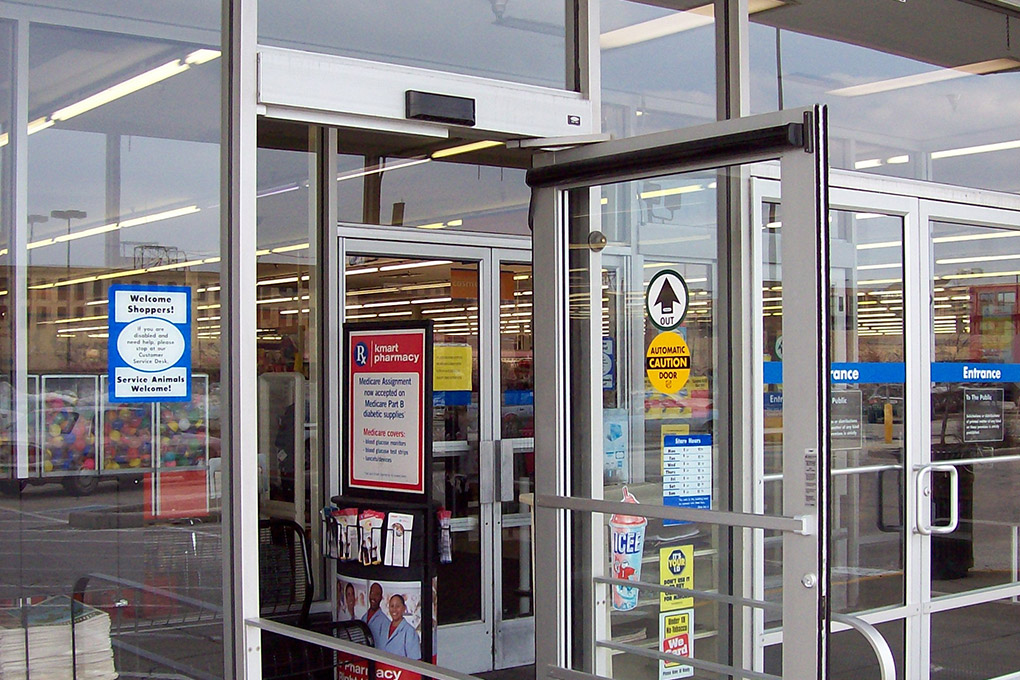

The GT300/8300 Overhead Concealed System is a heavy-duty solution that can handle busy pedestrian traffic. Its proven mechanical design delivers smooth, long-lasting operation and a flush swing arm provides a clean appearance. The door is supported by heavy-duty pivots on the top and bottom of the doorframe instead of on the operator shaft,
which allows for convenient servicing without removing
the door.
Photos
Features
Literature
Proven design for proven reliability Arm is flush when door is closed for a sleek attractive appearance Mechanical operator used with Basic Electronic or Microprocessor (standard) controller provides efficient, smooth operation Adjustable closing speeds allow the door to close sooner for energy savings or slower for increased pedestrian protection The door is supported by heavy-duty pivots on the top and bottom of the door frame instead of on the operator shaft, allowing for convenient servicing without having to remove the door Optional length headers for improved appearance Heavy-duty spring closer Heavy-duty all steel motor and mechanical gear box outperforms the competition Panic breakout available for center pivoted doors – allows inswinging doors to swing out in case of emergency Recycle feature available stops and reverses directions of swing path when an object is encountered for greater pedestrian protection Available with bottom load or convenient sideload header Sideload header access panel simply pivots up and locks into position, out of the way, enabling the operator to be quickly installed or removed for easy servicing while allowing the door to remain in a closed position, eliminating the loss of energy from within the building Works with new or existing door frames Seamless interface with a variety of activation devices and auxiliary equipment including fire alarm systems Meets ANSI Standard 156.10 when used with mats, Acusensor 3, or OA Edge Sensor System UL / ULC and CSFM approved Select a product
Overhead Concealed Operator Literature Type
All All Sales Sheets Owner's Manual Specifications Architectural Drawings Product Manuals Archived Manuals Technical References Technical Bulletins Technical Newsletter Sales Sheets GT300/8300 Overhead Concealed Operator pdf | Owner's Manual C-00110 Owner’s Manual, Full Automatic Swing Operators pdf | C-00345 Owner’s Manual, Full Automatic Swing Operators – French Rev 4-10-18 pdf | Specifications GT300 & 8300 Swing Operator Specifications pdf | Architectural Drawings Bottom Load Header – Center Pivot – Left Hand Inswing (GT300-01L) pdf | dwg | Bottom Load Header – Butt Hinge – Left Hand Inswing (GT300-01LB) pdf | dwg | Bottom Load Header – Center Pivot – Right Hand Inswing (GT300-01R) pdf | dwg | Bottom Load Header – Butt Hinge – Right Hand Inswing (GT300-01RB) pdf | dwg | Bottom Load Header – Center Pivot – Left Hand Outswing (GT300-02L) pdf | dwg | Bottom Load Header – Butt Hinge – Left Hand Outswing (GT300-02LB) pdf | dwg | Bottom Load Header – Center Pivot – Right Hand Outswing (GT300-02R) pdf | dwg | Bottom Load Header – Butt Hinge – Right Hand Outswing (GT300-02RB) pdf | dwg | Bottom Load Header – Center Pivot – Simultaneous Pair Inswing (GT300-03) pdf | dwg | Bottom Load Header – Butt Hinge – Simultaneous Pair Inswing (GT300-03B) pdf | dwg | Bottom Load Header – Center Pivot – Simultaneous Pair Outswing (GT300-04) pdf | dwg | rfa | Bottom Load Header – Butt Hinge – Simultaneous Pair Outswing (GT300-04B) pdf | dwg | rfa | Bottom Load Header – Center Pivot – Dual Inswing/Outswing (GT300-05) pdf | dwg | Sideload Header – Center Pivot – Left Hand Inswing (GT8300-01L) pdf | dwg | Sideload Header – Butt Hinge – Left Hand Inswing (GT8300-01LB) pdf | dwg | Sideload Header – Center Pivot – Right Hand Inswing (GT8300-01R) pdf | dwg | Sideload Header – Butt Hinge – Right Hand Inswing (GT8300-01RB) pdf | dwg | Sideload Header – Center Pivot – Left Hand Outswing (GT8300-02L) pdf | dwg | Sideload Header – Butt Hinge – Left Hand Outswing (GT8300-02LB) pdf | dwg | Sideload Header – Center Pivot – Right Hand Outswing (GT8300-02R) pdf | dwg | Sideload Header – Butt Hinge – Right Hand Outswing (GT8300-02RB) pdf | dwg | Sideload Header – Center Pivot – Simultaneous Pair Inswing (GT8300-03) pdf | dwg | Sideload Header – Butt Hinge – Simultaneous Pair Inswing (GT8300-03B) pdf | dwg | Sideload Header – Center Pivot – Simultaneous Pair Outswing (GT8300-04) pdf | dwg | Sideload Header – Butt Hinge – Simultaneous Pair Outswing (GT8300-04B) pdf | dwg | rfa | Sideload Header – Center Pivot – Dual Inswing/Outswing (GT8300-05) pdf | dwg | Product Manuals C-00350 Manual, NET Handy Terminal Programming Login to Download | C-00185 Opus Retro Manual Login to Download | C-00175 Opus (8)300,(8)350 OHC Login to Download | 15-12544-20 Main Power Connector (Pairs) Manual, GT710 & 8710 / GT300, 400, 500, & 600, Rev-1-8-15.pdf Login to Download | 15-12544-10 Main Power Connector Manual, GT710 & 8710 / GT300, 400, 500, & 600, Rev-1-8-15 Login to Download | Archived Manuals C-00185 OPUS Retrofit Kit Installation Manual Rev 4-23-18 Login to Download | C-00139 Opus Control Wiring and Programming Installation Manual, Rev 10-23-18 Login to Download | C-00139 Opus Control Installation Manual, Rev 3-30-17 Login to Download | C-00169 Wiring and Programming Manual, OPUS control, rev 6-13-16 Login to Download | C-00185 Quick Setup & Parts Guide, Opus Retrofit Kit, rev 6-13-16 Login to Download | C-00175 Quick Setup & Parts Guide, GT(8)300, GT(8)350 OHC Opus Swing Operator, Rev 8-10-16 Login to Download | C-00175 Installation Manual, GT(8)300, GT(8)350 OHC Opus Swing Operator, Rev 5-23-18 Login to Download | C-00185 OPUS Retrofit Kit Installation Manual Rev 9-22-16 Login to Download | C-00139 Quick Setup & Parts Guide – Opus Control, Rev 6-13-16 Login to Download | C-00175 Installation Manual, GT(8)300, GT(8)350 OHC Opus Swing Operator, Rev 12-10-18 Login to Download | C-00139 Opus Control Wiring and Programming Installation Manual, Rev 5-16-19 Login to Download | C-00139 Opus Control Wire and Programming Login to Download | Service Parts – GT300 OHC Analog Control Single – 2012 and earlier (note not all parts many be available) Login to Download | C-00139 Opus Control Installation Manual, Rev 11-4-16 Login to Download | Service Parts – GT300 OHC Analog Control Simultaneous Pair – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT300 Single OHC Magnum 2, 3 & 4 Control – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT300 Simultaneous Pair OHC Magnum 2, 3, & 4 Control – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT300 Single OHC U19 and earlier Control – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT300 Simultaneous Pair OHC U19 and earlier Control – 2012 and earlier (note not all parts many be available) Login to Download | C-00093 Quick Setup & Parts Guide, Magnum control, GT(8)300, GT(8)350 OHC Swing Operator, Rev 8-10-16 Login to Download | Service Parts – GT350 Single OHC Analog Control – 2012 and earlier (note not all parts many be available) Login to Download | 15-12439 Relay & Socket Instruction Sheet Rev 2-3-10 Login to Download | Service Parts – GT350 Simultaneous Pair OHC Analog Control – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT350 Single OHC Magnum 2, 3 & 4 Control – 2012 and earlier (note not all parts many be available) Login to Download | Service Parts – GT300/350 OHC Magnum 2, 3, & 4 Control Simultaneous Pair – 2012 and earlier (note not all parts many be available) Login to Download | C-00084 Wiring and Adjustment Manual with Magnum 4A Control – Rev 9-9-16 Login to Download | C-00184 Installation Manual, GT300-8300-350-8350 Swing Door Operator, OHC, with Opus Control, Rev-5-26-16 Login to Download | 10-2207 Time-Delay-Model-2200 for Analog Control Rev 06-22-00 Login to Download | 14-12121-20 Acugard and U series quick set-up sheet, Rev 11-12-08.pdf Login to Download | 14-2182 Soft-Start-Harness-Instructions, for Analog Control Rev 1-1-02 Login to Download | 15-10682 – Wiring and Adjustment Magnum Manual, Rev-11-4-15 Login to Download | 15-10744 Installation Manual, GT300 & 8300, Rev 9-19-14 Login to Download | Technical References Technical Bulletins Technical Newsletter
